Another successful application from our Netherlands distributor Innomotion.

This time is a Woodcutting / Profiling machine with 11 axis control!

Kast

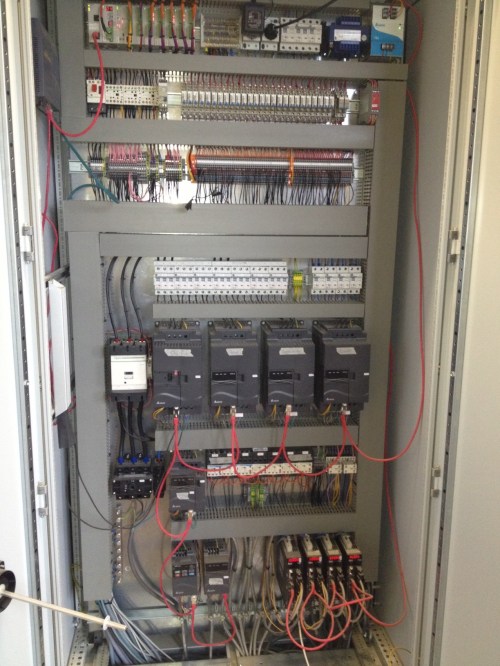

As you can see on the picture our partners use 7 VFD-E drives for transportation and high speed spindle, and 4 servodrives ASDA-A2 400W for the cutting/profiling.
Everything controlled by central CPU with Master CANopen module (DVPCOPM-SL).

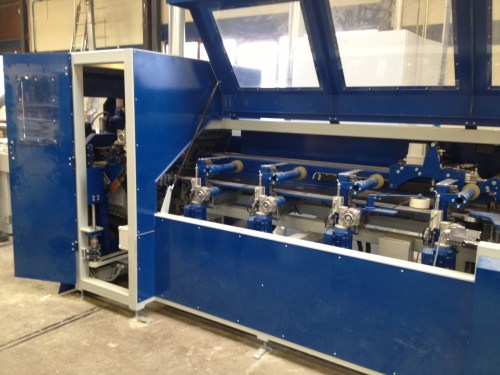

stootborden1

Via the PC Cad drawings are imported to the Machine and machine settings are executed. The PLC is controlling all the I/O and servo’s for the motion.
In this machine the wooden boards for the stairs are cut to length , width and angle on front and end of the board. The PC software is written in Labview.

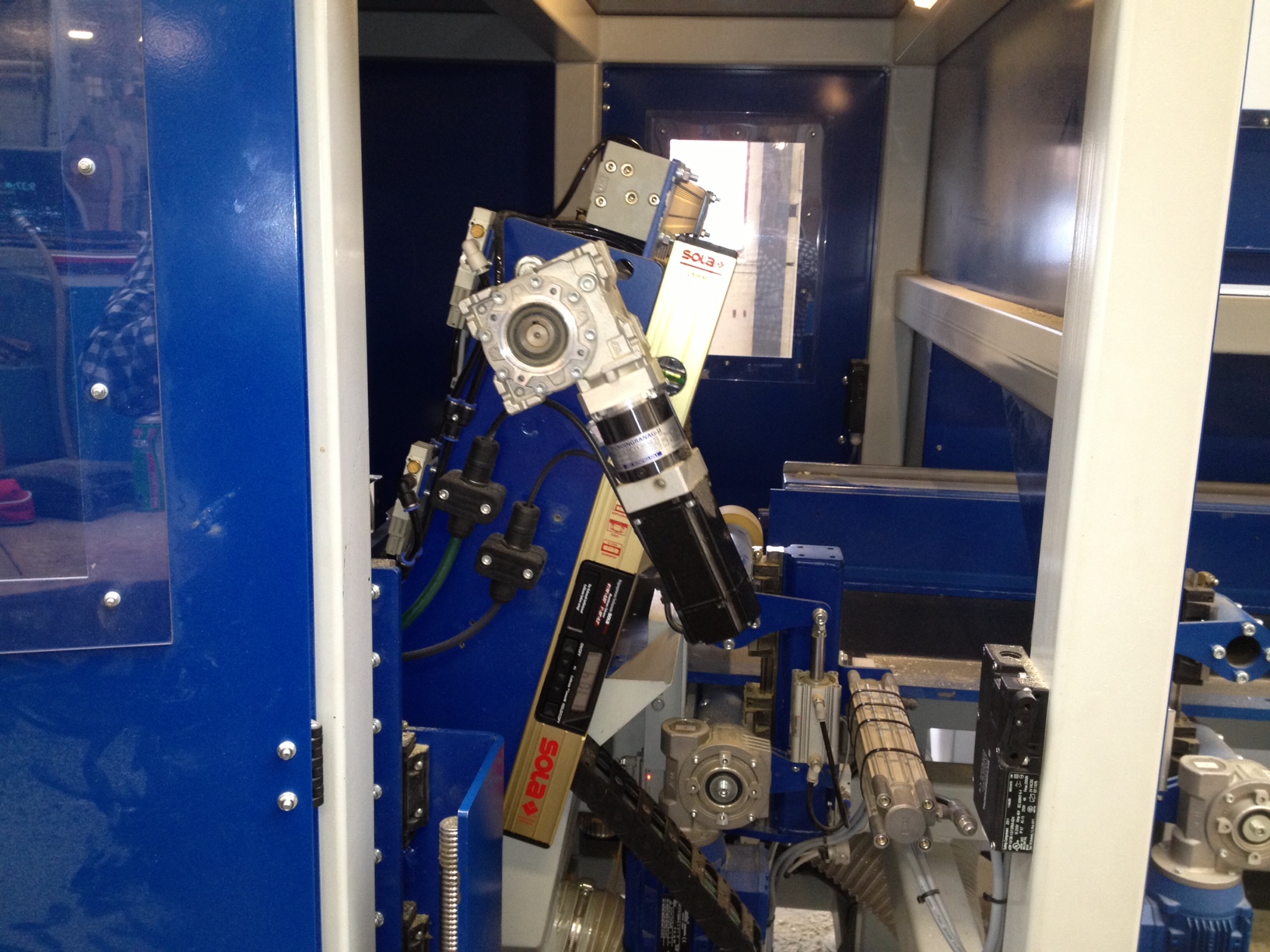

freesdraaien.

I hope you like it!
And with some luck, you can use it as inspiration for your next project!
