Another Delta successful application!

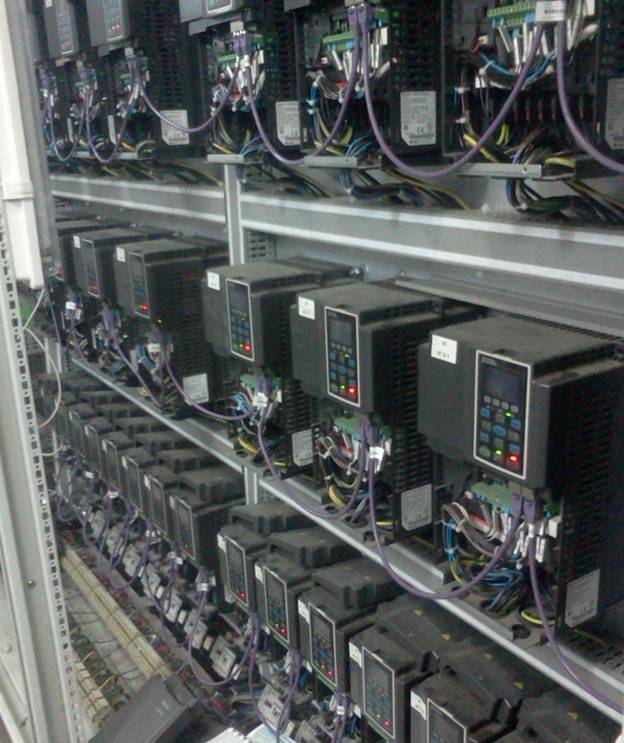

This time, the problem comes because of the big number of drives needed for the application.
Up to 68 Slaves to be controlled by a PLC, and even in Modus the theoretic limit is 128 nodes, the ones who are really in the field should know than more than 32 nodes means big troubles.
According to this, we recommend to our customer to use CANOpen in two different CANOpen Networks of 34 slaves each.

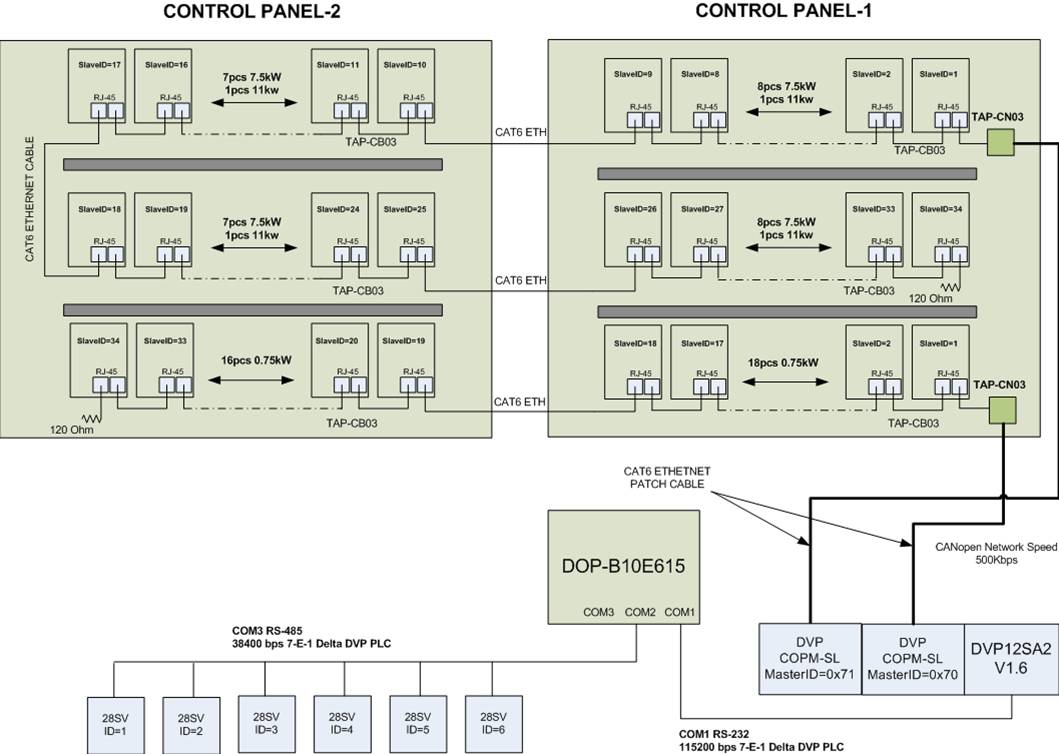

See the below picture with the network configuration
Just let you know that it wasn’t easy, but is working, thanks for the great technicians of our Turkish distributor FastLTD.
Feel free to download the presentation with full explanation of the application.
CanOpen_ Galvanizing production line on metal industry
Delta Industrial Automation
