Today, were going to talk about motion control.

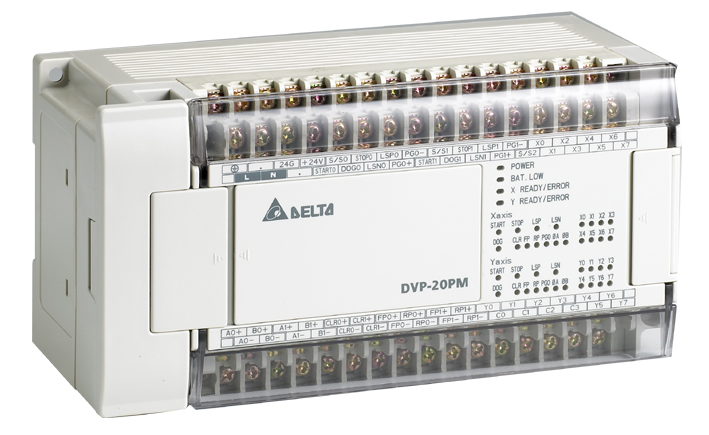

There´s a PLC not released in many countries, but capable to manage up to 3 axis using step and direction control, is called DVP20PM or PM series.
This PLC needs special software called PMSoft, available on the web for free, as always.
This software a part from be able to program DVP20PM, it have the capability to work with G-Code files
The G-Code files are a codified files that transform a Autocad file into a motion control trajectories, making the programming of motion control systems really easy.
Thanks to that codification, you can cut a difficult wood profile for example, designed previously using Autocad, and avoiding the hard PLC programming work to the engineer.
The problem that customer use to have with DVP20PM is when customer want to change the cutting profile of their product, because in that occasions, the Computer is needed, and not always our customer have a computer on the machine, isn’t it!
Here, is where appears our new DOP-PS models, already available in EMEA region.

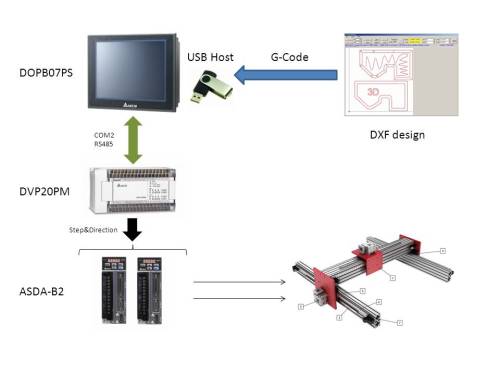

With this HMI´s your customer have the capability to change the G-Code profile only with one USB disk, following the next process:
1. Create Autocad File
2. Transform to G-Code and copy to USB disk
3. Connect the USB Disk to the DOPB-PS and download it to the 20PM
4. Run the program!
According to that, our HMI team prepares for us the complete following example where we´re going to cut an Scorpion picture profile into our 20PM.
You can download the HMI and PLC programs, and a nice pdf detailed explanation of how they create this application in our FTP Delta application guide folder
DVP20PM + DOPB-PS and G-Code download feature example
As you should understand this really simple kind of CNC tool could be applied to many kind of applications, from Wood cutting, plasma, or gluing, to stone grinding or even metal cutting!
Don´t hesitate to share your experiences with us.
And really soon same functionality to DVP10MC the future CANopen motion controller from Delta!
