Today a new typical application for Delta PLC.

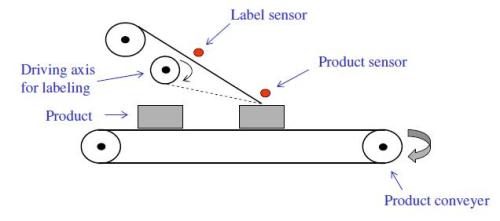

We’ll use the PLC capabilities and some sensor, to synchronize the AC motor feeder of the system with some stepper motor who will stick the label onto the product.
This program is one of the typical applications to use one of the new PLC instructions called MASK
To take a look to the program sequence, don’t hesitate to download the following pdf
Labbelling Machine Application
Delta Automation Europe
Our intention with this blog is to publish small examples and tips that are useful for the programmer, yet not enough important to appear in the newsletter.
If anybody would like to collaborate with it, don’t hesitate to send your post to email@example.com. I’ll be pleased to upload it.
The posts need to be written in English and be as illustrated as possible, either with images or videos.
May 22, 2020 at 6:21 pm
hello sir we need an double labelling machine aplication program
November 16, 2016 at 11:42 am
can u send me prog plz
October 9, 2012 at 6:52 pm
got no results yet sir
October 4, 2012 at 3:47 pm
i ll try to contact them,
but if i get no result then what should i do….should i go for panasonic system..
September 30, 2012 at 11:15 am
I talked to delta india. but they dint worked on this kind of application….can u plz support me
September 29, 2012 at 10:37 am
the labelling machine program is not working .
I use 12sa2 plc and used same logix as per mentioned by you.
but every time labell shifts by 1 or 2 mm.
kindly give me other solution or give me another idea too solve this proble.
i am using servo and plc.
September 29, 2012 at 7:46 pm
Sorry so few information to give you proper support, can you please contact with Delta distributor in India for better support?
September 29, 2012 at 8:45 pm
Wat suupport you require.
Please chk following
October 3, 2012 at 7:24 am
can u give me ur yahoo or gtalk messenger so that i talk to you on line
.It will be better for me so discuss exact what problem i am facing.
As right now the problem is i used your program mentioned in PDF file but every time when eye mark or fork sensor gives a signal to plc , already defined number of pulsed gives command to servo but every time label shifts, and not comes in proper point.
October 3, 2012 at 11:53 am
But I´ responsible of whole EMEA region, so I´m not allowed to support you.
That´s why I suggest to contact Delta India.
If you want my recommendation, try to contact Delta global service centre, they´ll know perfectly how to solve your problems
September 26, 2012 at 6:40 pm
May be it will work properly…….I have one new site of same application but with Servo .
i will check and reply again
November 16, 2016 at 11:43 am
hello,, which site
