As a programmer, sometimes I really miss some instructions in the Delta PLC’s. Recently, I discover that the others Delta programmers miss exactly the same instructions!
Because of that, I’m glad to announce a new group of instructions/functions for the new batch of Delta PLC’s.
Here related the most interesting news in my opinion

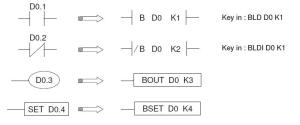

Bit control:
Finally the eagerly awaited Specific Bit control instructions!!
Motion:
Mask Area Functions: Essential for Labeling applications
DZRN: Improving the Homming functions!

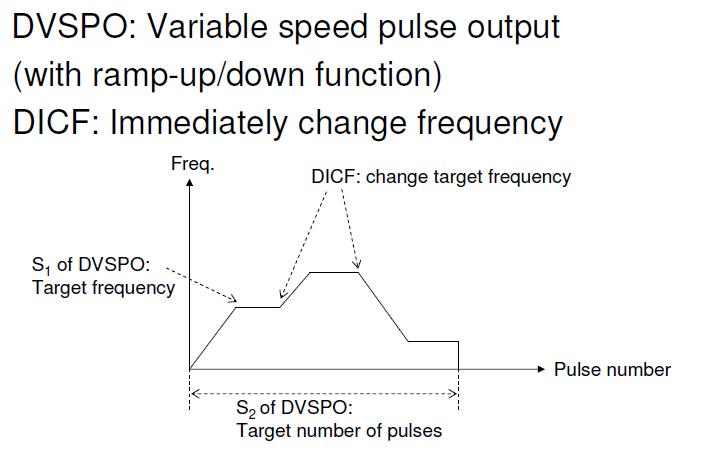

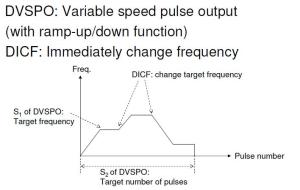

DVSPO: Variable Speed Pulse Output (Useful for control the speed of our motor using some analog input).
DICF: Immediately change frequency (another motion instruction thinking in typical motion applications like fly-on-the-cut).
Comunications:
Improving the comunication performance with the new function codes and special registers on the MODRW and PLCLink instructions.
Transform and Move Data:
New DTM instruction with several different features. I attach a temporary translation for your information, the formal translation will be released in the revision V of the manual
DTM Instruction sheet
Before you ask us how can I use that new instructions, please take a look to your PLC firmware version, and check it with the table at the end of the document.
And finally the promise of a very soon release of the new ISPSoftv1.08
Delta Industrial Automation
March 27, 2012 at 6:57 pm
Thanks…but one actually find it nearly by accident.
Double click to the left of the common line.
Out of habit one one is inclined to click the detail button – dont do this – an error message will appear.
Anyway just insert the pointer number e.g. P0 and click ok.
It only after you realise this, you want to kick yourself…took me long to figure it out!!!
Happy coding…its still a great plc
July 20, 2016 at 1:23 pm
thank you gray for sharing such a great experience ,
again thank you very much , it is really very helpful for me.
i moving around the glob to find Label Pointer P.
mkk
March 24, 2012 at 4:13 pm
I have the strangest challenge.
I want to use the simple CJ instruction but for the life of me I cannot find how one inserts the corresponding label P***
Thanks for any help
March 27, 2012 at 10:43 am
It´s simple when you know it, but complicate when you don´t know…
try just behind the common line of the ladder.
Check page 151 of the manual
November 29, 2011 at 5:43 pm
And if It is possible , I have some rquirments for ISP Soft.
November 29, 2011 at 5:41 pm
Can I make some notes about ISP Soft?
July 26, 2011 at 6:08 pm
I Am service engineer In my company. we have dealership of delta. i know only about A.C. Drive but i want to Know also about plc. so plz send me full manual of plc if u have.
July 28, 2011 at 2:38 pm
Hello Rakesh
You can find the manuals on our website, but from today, you can found it on our Delta PLC getting started
https://deltautomation.wordpress.com/2011/07/28/plc-getting-started/
February 8, 2011 at 9:25 am
Hi Bartek,
This new instruction are followed by some manual update, but obiously that manual is in chinese. And we used to need 1 month at least to publish the english version.
As soon as the update manual will be online, I post it.
February 7, 2011 at 10:32 pm
Nice information. I would like to ask if it is possible to add some information in any new Software or manual what was changed comparing to last version. Of course we can check it by ourselfs but it is much easier to know what was implemented and it is time saving.
It can be even such type of information as in this article.
Regards
