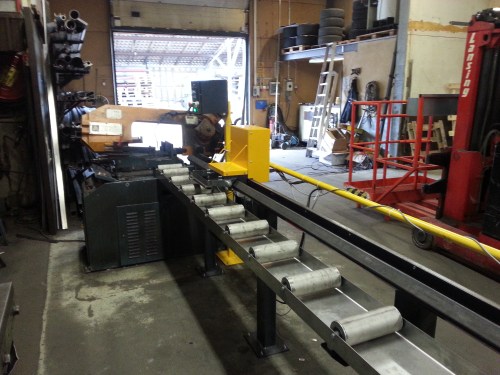

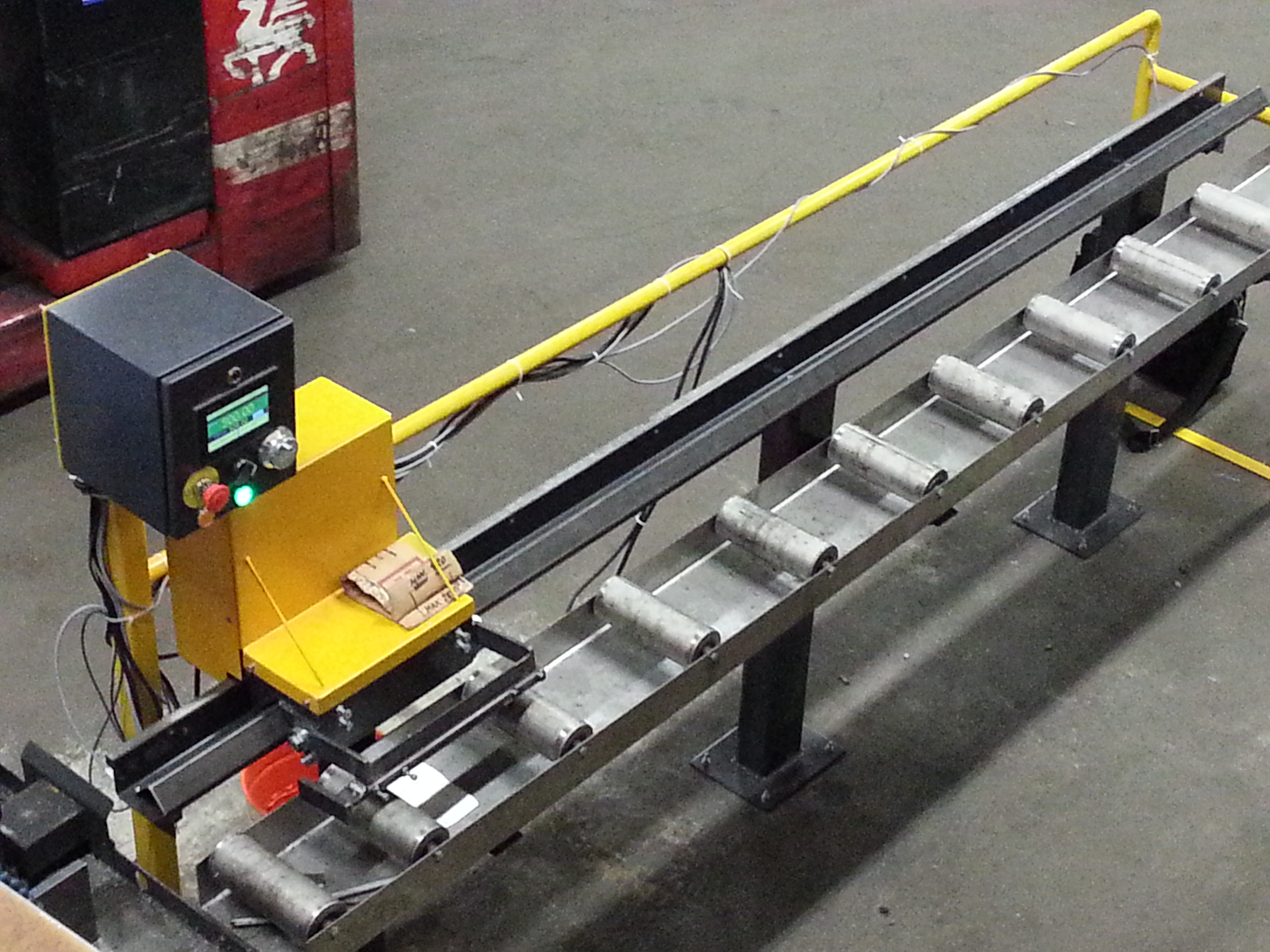

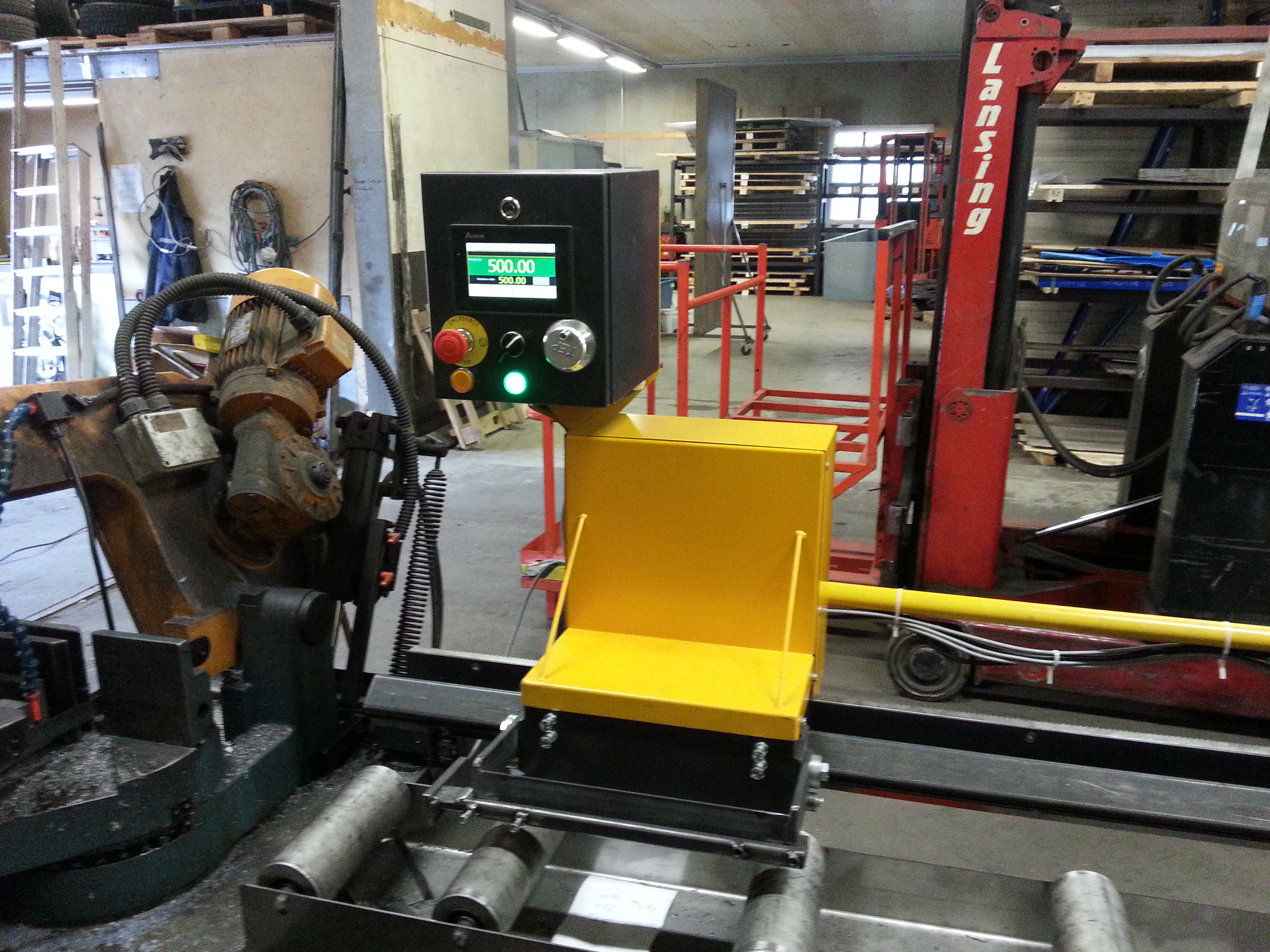

Another successful application, and this time comes from the company Thelen Tech from Finland.
This company engineer is a big an of Delta and our step and direction solutions, and for this simple but effective solution they use 750W ASDA-B2 drive for the motion together with DVP28SV2 for the control.
And to monitor or configure speed, they add DOPB04 HMI.
Originally this was planned as full automatic system, plan was there is gripper
which would push material to cutting length, then saw it, then push more… and
whole it should be fast (over 30m/min speed)
The cutting length can be adjusted using manually using hand-wheel, or automatic using HMI.
There is also possibility for closed loop feed back, but in these case feedback is taken from D1336 register
Also +/-10V speed command is possible, motion control just calculates difference between real and wanted position and turns it PWM (or voltage).
This pretty nice arrangement for relative (like MPG) and absolute positioning using at the same time.

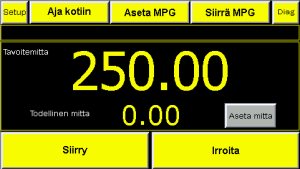

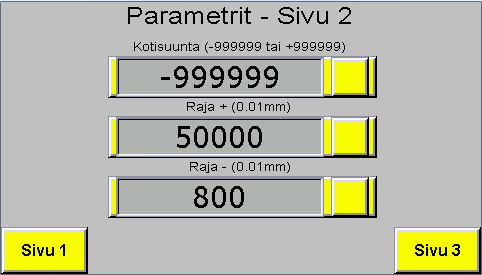

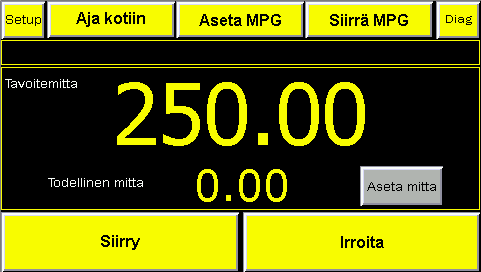

Offset and accuracy Adjustment Screen

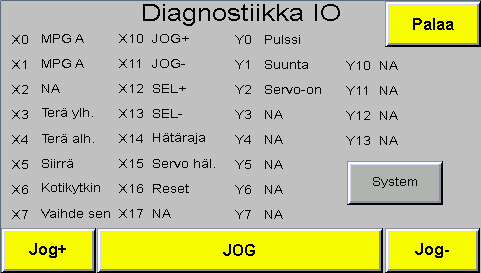

Diagnostics Screen, very useful for the designer.
Thank you very much Thelen Tech to share this new machine with us!
Keep impressing us like that!
