In the second part of this IFD9506 mono graphic, we’ll show you how to combine our IFD9506 with the other successful Ethernet module: DVPEN01-SL.
To make the thinks easy, this time we will communicate two of our DVP28SV with one of our DOPA HMI trough the RS485 port, using the IFD9506 as a gateway between the RS485 port and the ethernet PLC module (DVPEN01-SL).

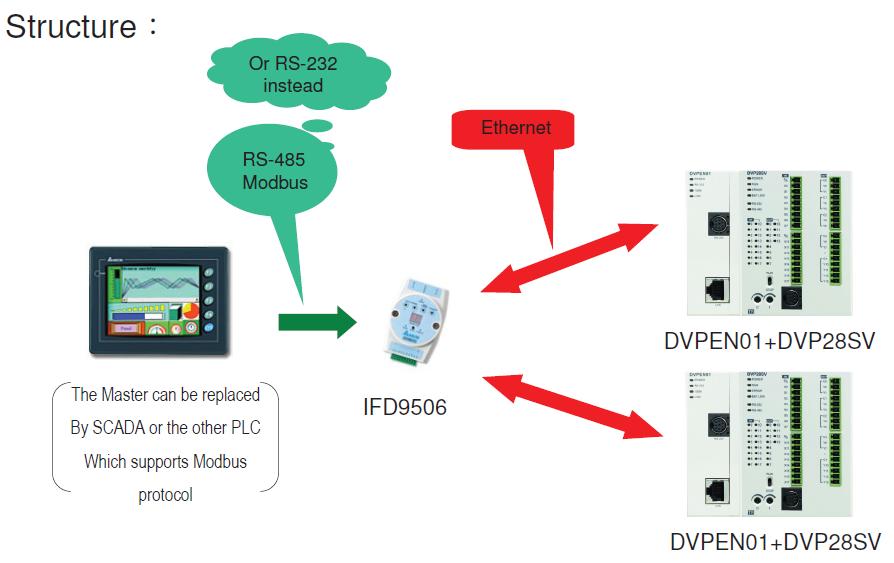

Aplication presentation: IFD9506+2 DVPEN01-SL
Nowadays, this application doesn’t have a lot of sense, because with the new Ethernet HMI this is not necessary anymore.
But this example opens the door for the next (an last) post of this monographic, where we will communicate from some SCADA or external client to our system trough IFD9506.
Furthermore, the fieldbus team keep us a nice surprise on the latest firmware update of IFD9506!
Can you wait?
Delta Industrial Automation
November 7, 2011 at 10:13 pm
what scada software can we use with ifd9506?
November 8, 2011 at 11:30 am
Dear Mafataurus,
The big part of the SCADAS of the market can be used with IFD9506. You just have to be sure that the protocol is Modbus TCP/IP.
In Delta’s webpage there are manuals to work with Wonderware, IFix and Citect.
http://www.delta.com.tw/product/em/download/download_main.asp?act=3&pid=3&cid=1&tpid=1
