Here it is!

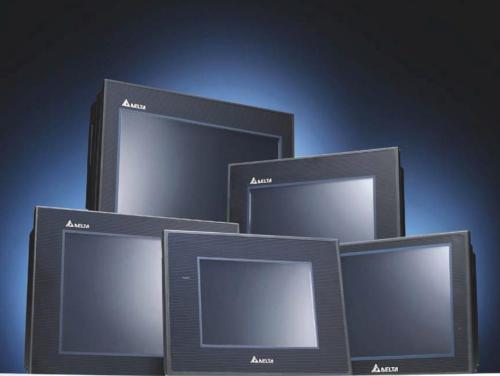

Again thinking in the begginers (and in this case not only them), let me share with you all our kit HMI Getting Started.
For the ones who uses PLC Getting started, and for the other too
HMI used to be more intuitive and user friendly than the PLC, but If you are trying to accomplish a complete program with reciepe, graph pictures etc.. you need some knowledge.
So our intention is give you some tutorials and examples and all the necessary tools to made your learning time as short as possible.
In this HMI getting started you will find:
1. eRemote / eServer Tutorials
2. HMI communication Examples with Delta devices
3. Manuals for DOPA and DOPB
4. Program examples for many features (graph, password, History, Event, Alarm, etc…)
Don’t hesitate to share with everybody.
Delta Industrial Automation
December 19, 2021 at 5:52 pm
link not working. can you please send me on my email muhammad.munir@yahoo.com
December 19, 2021 at 5:11 pm
link is not working please send this documents to my email. thanks
December 19, 2021 at 5:10 pm
link is not working
October 13, 2021 at 10:53 am
Hello. Anyone knows how to set up dop-100 (107-WV)HMI to Epson lx-310 dot matrix printer for report printing with time interval.
September 14, 2021 at 6:44 am
Strictly speaking, there is an essential difference between them. Because “touch screen” is only the hardware part that may be used in HMI products, which is an input device installed in the front of the display screen to replace some functions of mouse and keyboard. HMI products are a type of human-machine interaction device that includes hardware and software. In the industry, it is not scientific that people often call the HMI products with touch input function “touch screen
December 5, 2017 at 4:24 pm
how i can download the program from hmi DOP-B to flash because when i try the software it asks PASSWORD and i do not, the Turkish company sells me a screen that contains the program every time the old screen is hilly.
February 3, 2020 at 5:05 pm
IF I UPLOAD DATA TO HMI FROM PC , ITS SHOW HMI COMMUNICATION IS TERMINATED HOW TO SOLVE THIS PROBLEM
July 2, 2017 at 5:35 am
Touch screen was not working in some places on screen .delta HMI DOP-B07s201 we are using from last 5 years now we are getting this type of problem please guide us for trouble shooting shall we know the problem
August 1, 2016 at 5:52 pm
Hlo sir, i have two qus
Qus1
I used dop03s211 hmi and dvp-ex series plc. Plc not support to rtc,How to Hmi rtc controlled plc memory bit on/off
Qus2
Same hmi how to numeric display data register value copy to usb disk
July 31, 2016 at 12:18 pm
Dear sir
I have perches farts time Delta make HMI B07S411 and Dvp ES PLC please tell me witch software to be instill and how to program HMI (switch IO Instruction) and get it start. PLC program completed but HMI programming i don’t understand so please send me the HMI programming manual or Gide
Thanks & Regards
Francis D’souza
022 61206600
March 6, 2016 at 11:44 am
Sir, how to use macro or create the macro in the hmi with some example, or provide any manual, which is better us.
February 24, 2016 at 6:56 am
HOW TO SETUP THE BIT WISE ALARAM MESSAGES ON THE DELTA HMI DOP B07S411 65536
June 17, 2015 at 8:20 pm
hi i would like to know how to configure analog inputs like temperature and pressure sensors to the wplsoft program ,i did a plc course on digital inputs but not yet familiar with analog inputs
January 22, 2015 at 1:06 pm
i have delta DOPB03S210 i m interfacing it with my temp. cont. i want to know how to set temp limit in HMI how to indicate them in hmi , my temp controller read address is “7D0” plz send me example if u guys have any…..
June 27, 2014 at 3:02 pm
hallo,
am using DOPSoft 1.01.o8 version s/w
while writing macro for Errors/Faults/Warnings coming from inverter for one inverter am able to get errors but am having 32 inverters connected in dasy chain.
So please let me no how to go further.
June 26, 2014 at 12:29 am
How can I set the DOP-B07S411 in RUN mode from the System Menu. I don’t have the SYS button. I use the System menu to set the HMI to bypass mode to edit the PLC program (FP series PLC). Also, how can I go to System menu from the original screen or from a running screen without embedding a System Menu button element.
March 29, 2014 at 9:56 pm
All i want is some examples on the hmi and a tutorial. I cant find it. SO mutch reading bla bla bla bla, but where are the basics?
March 31, 2014 at 8:25 am
Click the link…
May 26, 2013 at 11:35 pm
hello sir,
plz send tp05/tp08 recipe example
thx in advance
April 27, 2012 at 12:04 pm
Page password protected.
I need diferent password and not level password.
Any ideias ?
April 19, 2012 at 10:05 am
the software on the delta site is not updated
the version is 2.00
and in the example is 3.0
April 19, 2012 at 4:25 pm
Try with DOPSOFT
February 26, 2012 at 12:39 pm
Hello ,
Is it possible to get the dop files that came with the new HMI?. I tried to download them but it wasn’t possible for some reason .
I´m currently making an example, to a client, and i need to create more data to be displayed, i´m using timetick and arithmetical functions to simulate data .
February 27, 2012 at 6:49 pm
Hello Roger
Sorry, I don´t have those files neither!
In any case, you don´t need them. Just use macro potential to do everything you need/want.
I should recommend you to check the History example on that post to check how to create dancing numbers :)
November 28, 2011 at 3:55 pm
Hello,
I have just started working with HMIs mine is DOP-AE57BSTD
I got stuck up with following marco code:
IFB 1@M2==ON THEN GOTO LABEL 1
LABEL 1
$13=$13+1
the problem is , at any state of M2 ON/OFF $13 just keep on increasing.
i want that the value of $13 should only increase by one step when 1@M2 goes high.
Please suggest!
December 2, 2011 at 9:30 am
In this case I used to use:
IF 1@M2==0
$13=$13+1
ENDIF
easy ;)
