One of the most used features of our new S2 series are the high speed Inputs and Outputs.
The manual and brochures, have all the information here related, but we like to compile it for fast reference.

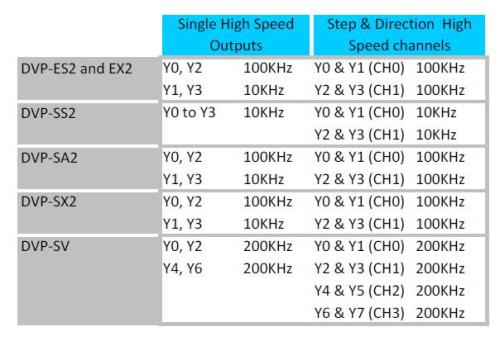

To control a Delta Servo drive trough step and direction (or a stepper motor, inverter…) those are the speed limitations of our new PLC’s
Click on the picture for bigger size

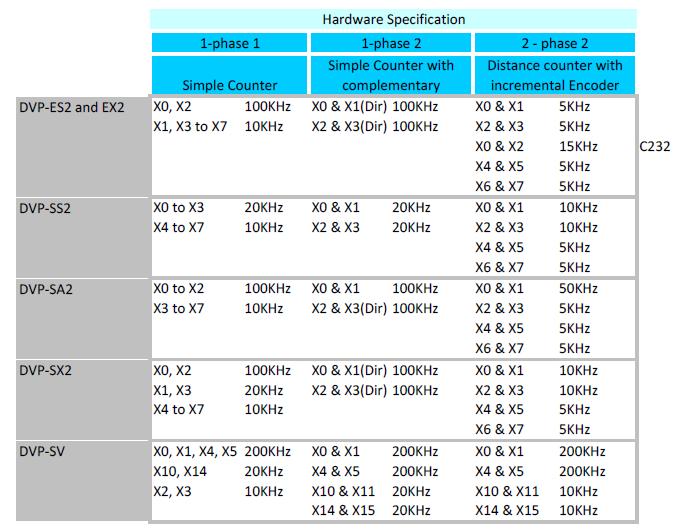

On the other side, If you need to measure a distance with Encoder, or just counting the number of pieces, then you must check first what are the max speed allowed for our CPU’s
Click on the picture for bigger size

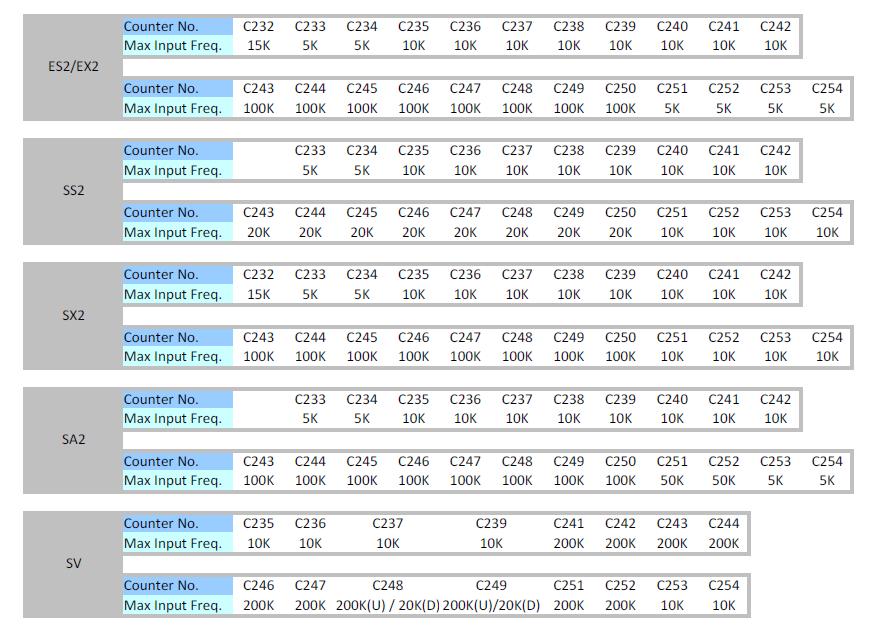

But If you are going to made the program, this sheet with the proper Counter name, and their limitations, It would be really useful.
Click on the picture for bigger size
If you prefer to save all this information in your computer download the next Excel file
