Do AX-8 digital inputs support AB-Phase encoder connection since they are high-speed inputs?

1–2 minutes

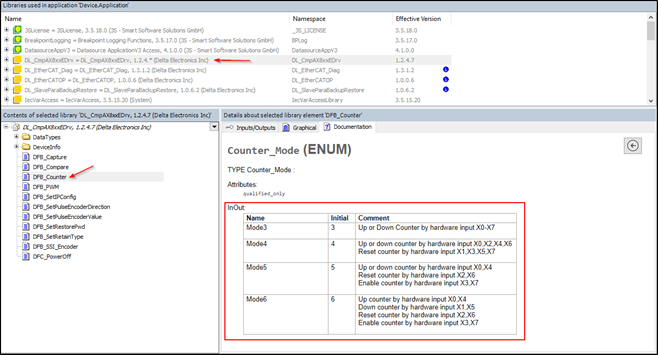

The AX-8 digital inputs don’t support AB-Phase encoders even though the inputs support 1Mhz input speed. They can be used as single-phase encoder inputs individually. For this purpose, DFB_Counter function block is applicable with the modes emphasized in the red rectangle below.
